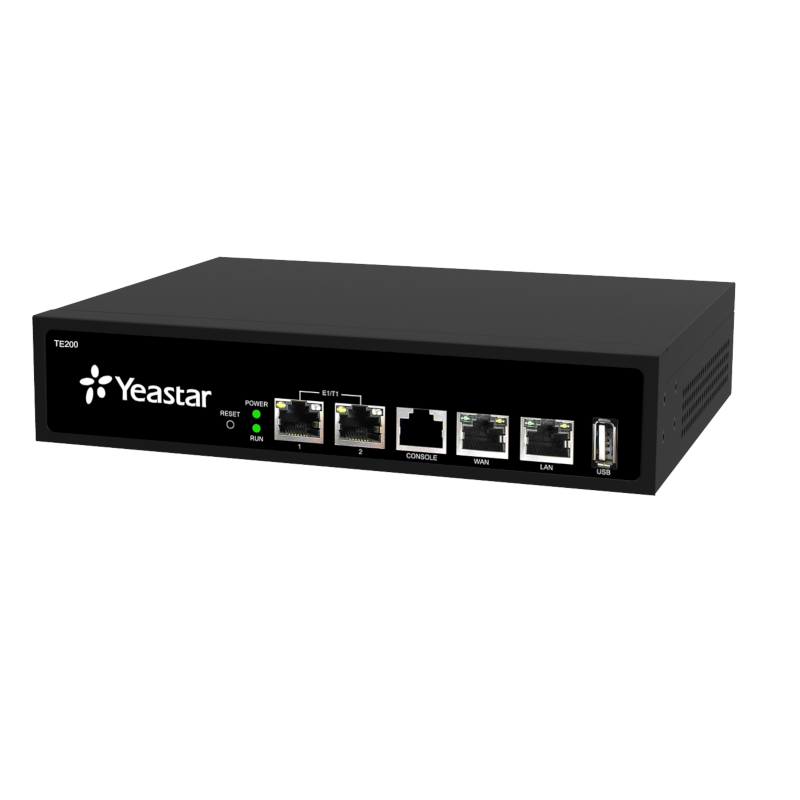

Yeastar NeoGate TE200
VoIP PRI Gateway
Manufacturer
Yeastar
Product SKU: NGTE200
2 pcs ISDN30, EuroISDN, WAN and LAN ports, Call Routing Rules
Unit price: 675.000 Ft
End of life
Now 10% off! The price has already been discounted and valid while stock lasts.
Original price: 1980 USD
NeoGate TE200 is a double port VoIP E1/ T1 /J1 gateway (VoIP to E1/ T1 /J1, and E1/ T1 /J1 to VoIP) that supports up to 30 concurrent calls. It’s designed to bridge the gap between E1/ T1 /J1 and VoIP networks. TE100 offers SMBs cost effective additions to an legacy telephone system to bring the true benefits of VoIP. Integrating TE100 into an existing network will allow for inexpensive communication via SIP trunking. Also, it could connect VoIP systems with E1/T1/J1 service from legacy carriers.
Specification
- E1/T1/J1 Port: 2 (Support PRI, MFC R2, SS7)
- Protocol: SIP (RFC3261)
- Transport Protocol: UDP, TCP, TLS, SRTP
- DTMF: RFC2833, SIP INFO, In-band
- Codec: G.711 a/u-law, G.722, G.726, G.729 A, GSM, ADPCM, Speex
- LAN: 10/100 Mbps
- WAN: 10/100 Mbps
- Size: 213x160x44mm
- Power Supply: AC 100~240V,50~60Hz (DC 12V, 1A)
Features
- Trunk Support
- Call Routing Rules
- Automatic appending and stripping of digits to dialed numbers
- Caller ID name and number support
- FAX support
- Blacklist
- Firewall
- DDNS Support
- Backup And Restore
- Easy to install
Package content:
- 1 pcs NeoGate TE200
- 1 pcs Power adatpter
- 1 pcs Ethernet cable
- 1 pcs console cable
VoIP PRI Gateway
VoIP PRI Gateway
pdf
NeoGate_TE_Series_Datasheet_en.pdf
