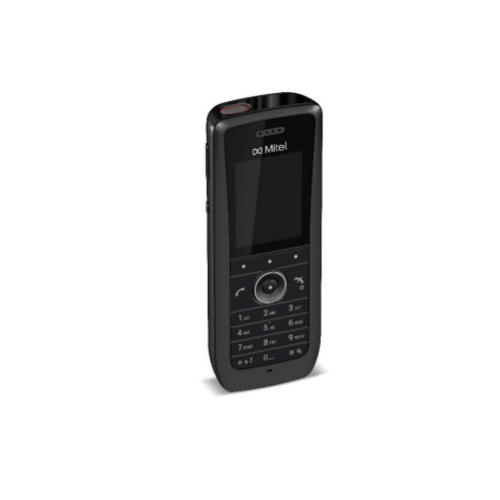

Mitel 5614
DECT phone

The Mitel 5614 DECT phone is designed for mobile users who desire a device that meets their demanding communication needs and in workplaces such as hospitals and light industry where it offers additional functionality for messaging and alarm handling. The 5614 affords users the flexibility to tailor the phone for specific needs through its programmable soft keys. It offers full duplex hands-free, support for both Bluetooth headsets as well as for standard (3.5 mm) headsets to compliment the way they work today. The 5614 offers a large high resolution and informative 2.0” backlit color display. There are two methods of charging the 5614, either by a traditional individual desktop charger unit or via a six-way charger rack. As an option for phones that are used in shifts, or when there is no time to leave the phones in a charger, there is a 6-way battery pack charger. This allows the users to easily switch to a fresh battery when needed.

Advanced messaging functionality, including configuration of the alarm button is supported as an add-on option to the Mitel 5614 phones. This option is available via dedicated license on the phone. (See separate info on the licensing).

Phone Management

The DECT phones can be managed in two alternatives ways: a central solution using the CPDM3/WSM3 server and/or a local PC solution with phones docked in a dedicated Desk PDM Programmer. The Central Portable Device Manager (CPDM3/WSM3) solution has the same functionality as the PC-based solution, but is centralized and can manage multiple DECT phones simultaneously. The CPDM3 works with LAN-connected Rack PDM Chargers and Desk PDM Programmers. Phones can then be managed either locally or remotely. For DECT phones used in IP DECT systems the phones can also be managed over-the-air.

Desk PDM Programmer

Desk PDM (Portable Device Manager), supports configuration of phones with all their parameters, as well as software upgrades. The Desk PDM software is installed on a PC and connected to the Desk PDM Programmer via the included USB cable. A database on the PC stores all the phone configurations - only one phone can be managed at a time.

Compatibility:

The Mitel 5613 and Mitel 5614 cordless phones have a different form and color compared to DT390 and DT690 phones. However, the electrical interface and the connector at the bottom of the phones are the same. Therefore, Mitel 5613 and 5614 can be docked and charged in the old DT390/DT690 chargers (Desk Charger and Rack Charger). But, due to the differences in the physical shapes, the old DT390/DT690 can not be charged in the new Mitel 5613/5614 desk chargers. The same is valid for the old Desk PDM Charger vs. the new Desk Programmer (note that the new Desk Programmer for Mitel 5613/5614 does not provide charging).

The existing DT390/690/4x3 Rack Charger is compatible with the Mitel 5613 and 5614 and will be used by corporate Mitel for the new Mitel 5613 and Mitel 5614. The name of the Rack Charger will be modified to reflect the expanded usage.

DT390/690 Security Chain will change product number and name, however it is the same security chain and it will fit the old DT390/690 as well as the new Mitel 5613/5614.

The DT390 spare battery will change product number and name, however it is the same battery as is being used in Mitel 5613 and it is thus completely compatible.

The Mitel 5613 and Mitel 5614 cordless phones have 3,5 mm headset connectors and are therefore not compatible with older headsets using 2,5 mm connectors.

Mitel 5614 supports SMS messaging in conjunction with other SMS capable Mitel DECT terminals while used with Mitel CPDM3.

Mitel 5613 and Mitel 5614 are the successors to DT390 and DT690.

Features:

• Backlit high resolution color TFT display (2.0”, 240 x 320 pixel)
• Central phonebook unlimited, 1000 company phonebook entries and 250 local phone book entries
• Talk time: 20 hours
• Stand-by: 240 hours
• Charga time: 4 hours
• DECT SMS
• Alarm button
• 14 adjustable ring signals including vibrating
• Hands-free with duplex loudspeaker
• Bluetooth for headset
• Standard 3.5 mm headset connector
• 3 soft keys, 4-way navigation key
• Illuminated display for incoming call & charging
• Supporting Bluetooth headset (BT 3.0)
• Supporting G.722.2 (over IP-DECT)
• Supporting GAP/CAP
• Languages supported: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese (Brazilian), Russian, Slovakian, Spanish, Swedish, and Turkish, + 1 downloadable.

Supported systems:

• The Mitel 5613 and 5614 are formally released and supported by MiVoice MX-ONE 6.3. The Mitel 5613 and Mitel 5614 support the display management of the MX-ONE Integrated DECT.

Accessories:

• Desk charger Mitel 5613 and 5614 for charging the phones (EU or Global version)
• Rack charger for Mitel 5613 and 5614, includes LAN connection for CPDM management
• Programmer for Mitel 5613 and 5614 for management of the handsets via WinPDM (Note that the new Desk Programmer do not provide charging of the phones)
• Rack Battery charger for Mitel 5614 batteries
• Security/Swivel clip Mitel 5614
• Carrying case Mitel 5614
• Security chain Mitel 5613 and 5614

Package content:

• Mitel 5614 phone
• Belt clip
• Battery
• Quick User Guide
